Plant Connectivity
End-to-End OT Data Path
Machines are grouped by controller family and shop area. Each WP500 handles ≤10 machines. A gateway failure only affects its own group.
Architecture
PLC → WP500 → ADVAIT → 42Q MES
Machines & PLCs
Cutting Machines
16 machines · Mitsubishi, Weihong, Eckelmann, Special
H8-1 CNC / VMC
55 machines · Mazak, Fanuc, Mitsubishi, Siemens
Bus Bar
15 machines · Siemens, Beckhoff, Fatek, Mitsubishi
Flexible Shop
17 machines · Renu, Mitsubishi, Special
H8
48 machines · Mitsubishi
H111
33 machines · Siemens, Mitsubishi
Surface Treatment / Process
10 machines · Multispan, Special

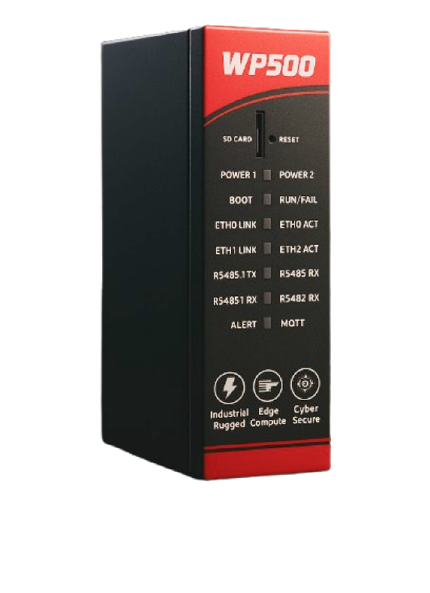

WP500 Gateways
Industrial rugged
Edge compute
Cyber secure
Edge compute
Cyber secure
WP500-001Online
8/10 · 904 m/min
WP500-002Online
8/10 · 964 m/min
WP500-003Online
10/10 · 579 m/min
WP500-004Online
9/10 · 945 m/min
WP500-005Online
9/10 · 710 m/min
WP500-006Online
9/10 · 843 m/min
WP500-007Online
9/10 · 957 m/min
WP500-008Online
9/10 · 798 m/min
WP500-009Online
8/10 · 731 m/min
WP500-010Online
7/10 · 403 m/min
WP500-011Online
9/10 · 840 m/min
WP500-012Online
8/10 · 957 m/min
WP500-013Online
10/10 · 494 m/min
WP500-014Online
10/10 · 404 m/min
WP500-015Online
10/10 · 480 m/min
WP500-016Online
9/10 · 437 m/min
WP500-017Online
9/10 · 758 m/min
WP500-018Online
9/10 · 455 m/min
WP500-019Online
8/10 · 522 m/min
WP500-020Online
8/10 · 822 m/min
WP500-021Online
8/10 · 583 m/min
WP500-022Online
10/10 · 883 m/min
Each WP500 performs protocol handling, local timestamping, buffering, calculations and data normalization.
ADVAIT Platform
Onlineadvait-nsk-01.mss.local
- · Contextualization & governance
- · Data quality validation
- · Time-series & event storage
- · Comm supervision & S&F control
- · MES/ERP publishing
Ingest
3,200/s
Publish
2,800/s
ADVAIT is the OT/IT boundary. Machine data never bypasses it to reach MES.
Northbound Systems
42Q MES
Onlinehttps://mes.42q.mss.local/api/v2/events
Success
99.2%
Queue
4
Store-and-forward at both the WP500 and ADVAIT layers protects data during interruptions.
Blast Radius Isolation
A single WP500 failure impacts only the machines connected to it (max 10). The other 21 gateways and their 184+ machines continue collecting and forwarding data normally.
Protocol Coverage
WP500 normalizes MELSEC, Fanuc FOCAS, OPC UA, MTConnect, S7, ADS, Modbus TCP/RTU and Ethernet/IP into a unified ADVAIT model.
Modular Growth
New machines join by binding to an existing WP500 (if capacity remains) or provisioning an additional gateway. No changes to ADVAIT or MES configuration required for like-for-like assets.
